WeltHaus Door ALU110 system Aluminium 100%.
Flush door ALU110 system is 100% aluminum with 3 seals.
ALU110 System are our premium doors made from a combination of full aluminum profiles system + aluminum door panel, covered inside and outside.
The advantages of ALU110 system:
- high mechanical stability;
- high thermal insulation;
- 3 seals in the whole door frame;
- available in all models;
- different colours and combination colours possible. Matt powder coated fine structured colours!
- inside and outside in RAL colour (of choice) powder coated. Standard- in the same main colour inside and outside or on request you can choose different colours;
- one of the newest automatic multi-point hardware in the world, with several innovation, Winkhaus - AV3;
- 3D- dimensional adjustable Rollhinges.
Fakten:
Date about ALU110:
- Ud value of the door to 0.55 W/m2K.
- Safety up to RC3.
- Soundproofing> 36 dB.

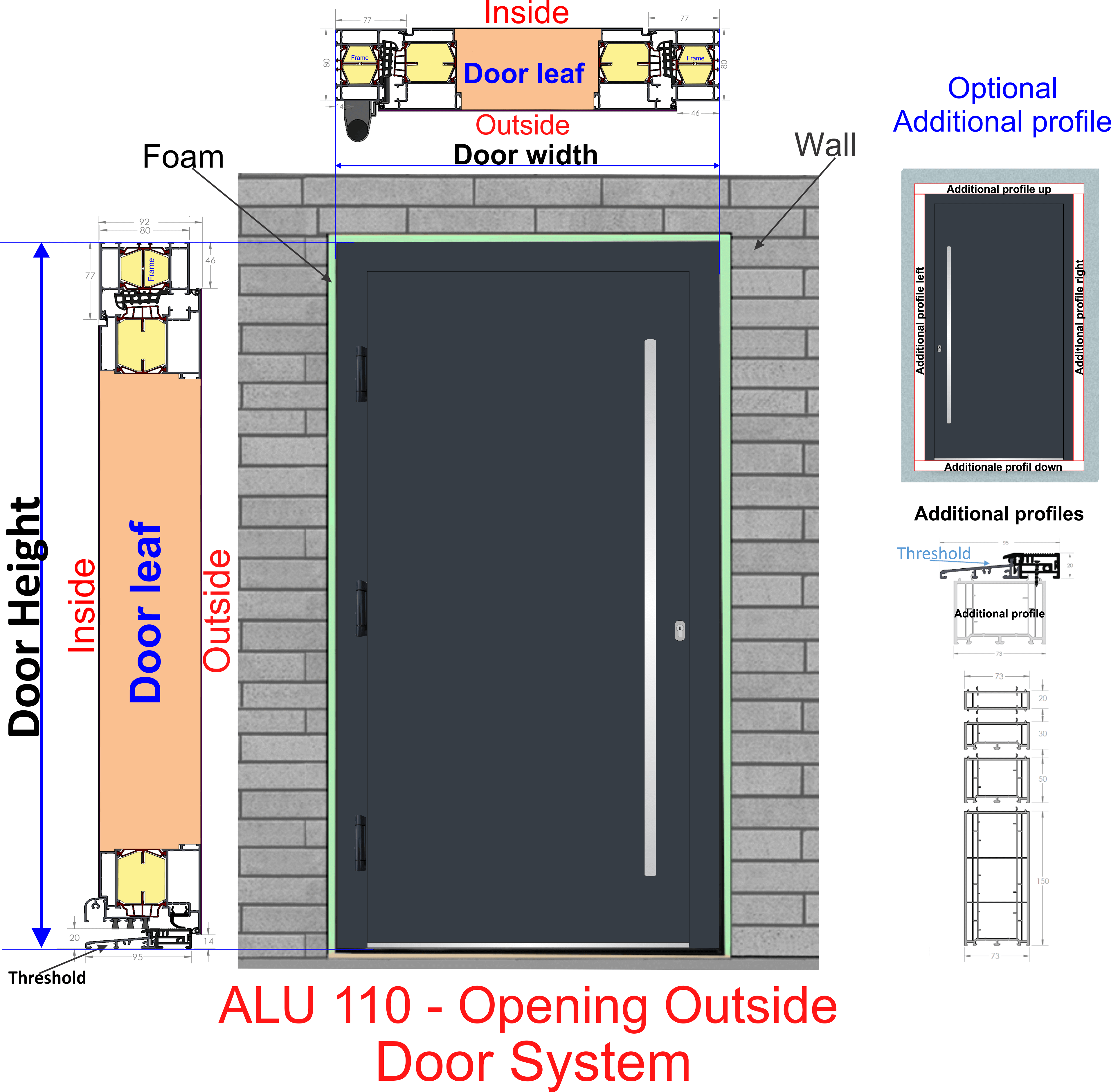

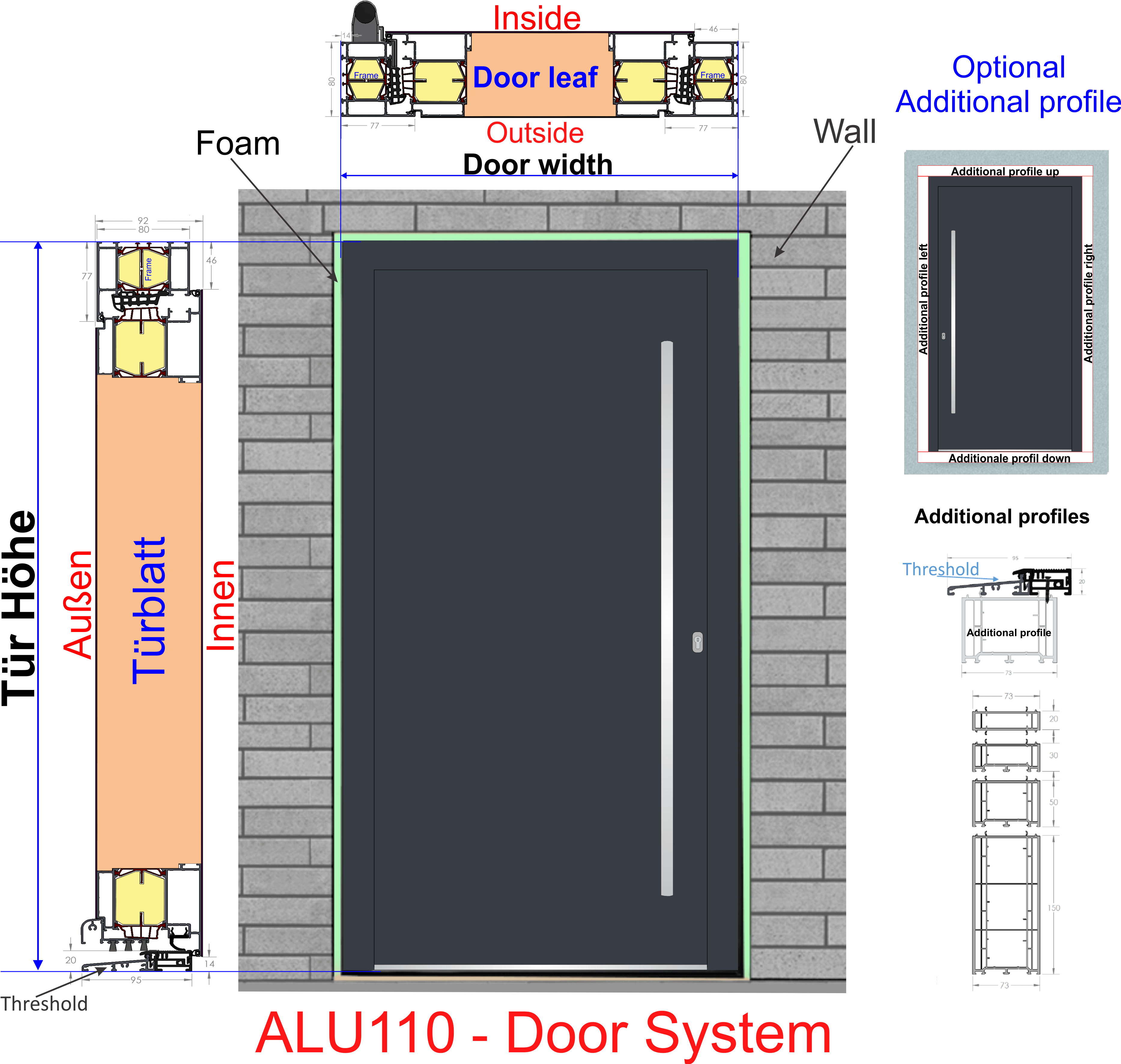

ALU110 are our standard full aluminum door system, made in a special, very strong aluminum, with a total depth of 93 mm.
The frame:
- exclusive design;
- the aspect is very beautiful with round corner, powder coated in the desired colour;
- frame depth is 80 mm;
- frame width is 77 mm;
- the aluminum threshold is 20 mm height and 95 mm depth with 2 seals and 3 brushes.
The sash:
- is a monoblock with aluminum plates covered inside and outside - which ensure a high stability for a long period of time;
- the door panel is a combination of several insulation materials, so that the entire single-block becomes a very stable structure with a depth of 93 mm;
- 4 layer laminated safety glass Ud 0,5 / 43dB standard frosted glass;
- the decorations are made of satin stainless steel.
Standard in the price:
- different colours and combination colours possible. Finely textured powder coated colours (Matte)!
- 3 Seals in the whole door frame;
- Aluminium threshold thermal separately 20 mm height, with 2 seals and 3 brushes;
- AV3 Mechanical - Automatic locking system with Winkhaus daytime;
- 3D-dimensional adjustable Rollhinges;
- Inside and outside handle;
- Cylinders 5 keys;
- Wooden box packing;
- 90° fastening system with stainless steel handle - for a better stability and easy access to the cylinder lock!
Available options:
- EAV3 motorized automatic lock with codetaster, fingerprint, Bluetooth;
- Inside and outside different handle models;
- House number, scratch protection, weather protection;
- Sidelights /skylights;
- Illumination with LED (white, blue or RGB) in glass (infinty mirror) and door threshold;
- Additional profiles.
And other options on demand, depending on the possibilities. Please contact us.
It is possible to make the height of the door set to a maximum of 2.8 meters.
Delivery time: After receipt of payment and technical clarification, it takes about 20-30 working days to complete your order confirmation from Welthaus Haustür.
