WeltHaus Entry Doors WH75 Aluminum with PVC

This modern, artistic designed door, meets all your requirements. The technical specifications are of the highest standard on the market !!!
Depth: 85 mm Frame, 75 mm Sash, 62 mm both sided Aluminum panel, Ud up to 0.8 W/m2K.
WeltHaus door WH75 system, our models are specially designed to give personality to your home.


Frame and sash, full Aluminum structure outside, powder coated painted, in the desired RAL colour. Aluminum white panel inside, framed in a PVC structure.

This is a special DOOR:
  • One piece leaf, perfectly planer outside, both sided aluminum sheet;
  • high thermal insulation, better that you have ever seen in a PVC or wood door;
  •  one of the newest automatic multi-point hardware in the world, with several innovations, Winkhaus - AV3.

_____

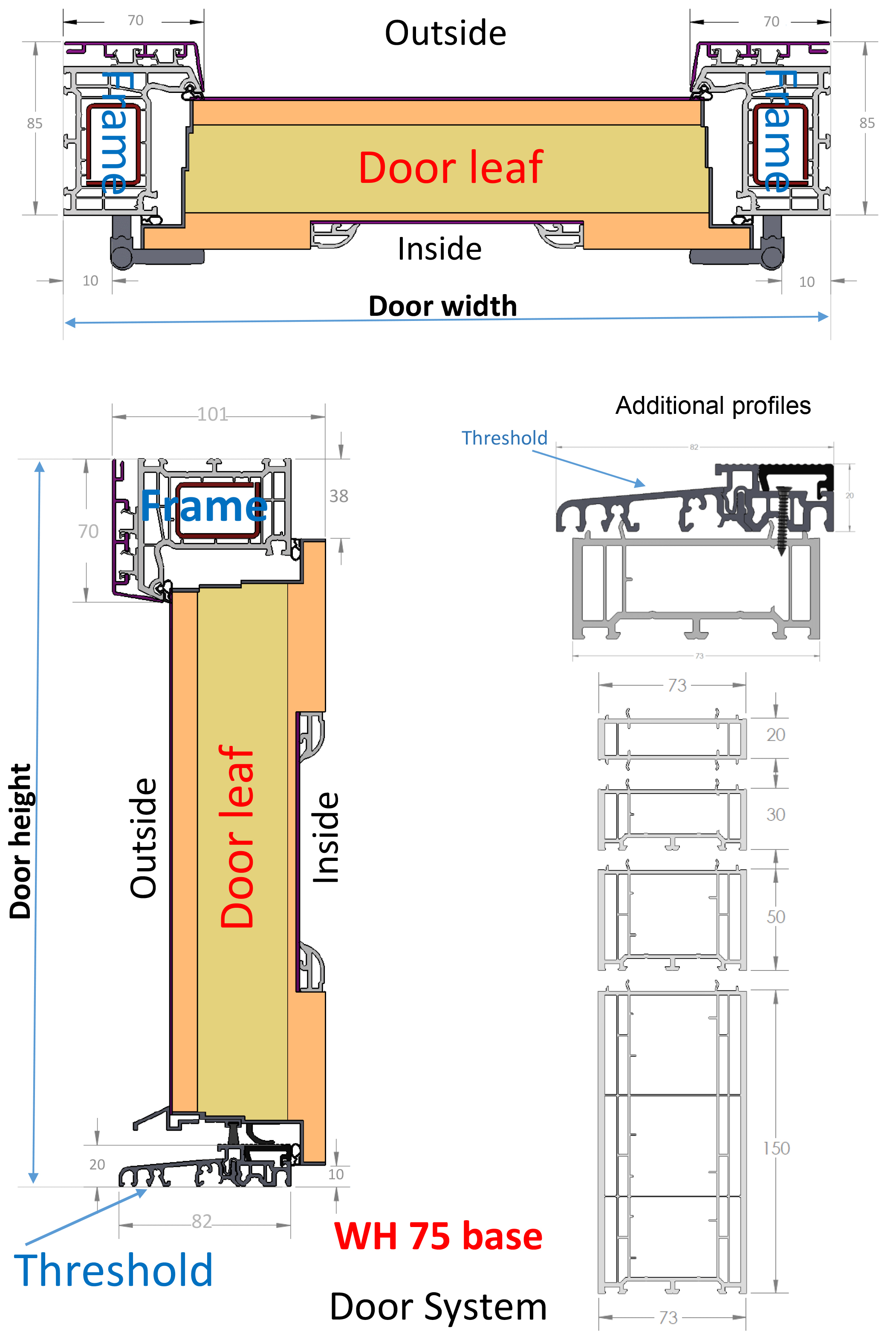

WH 75 are our standard doors made from a combination of aluminum and PVC with a total depth of 101 mm.

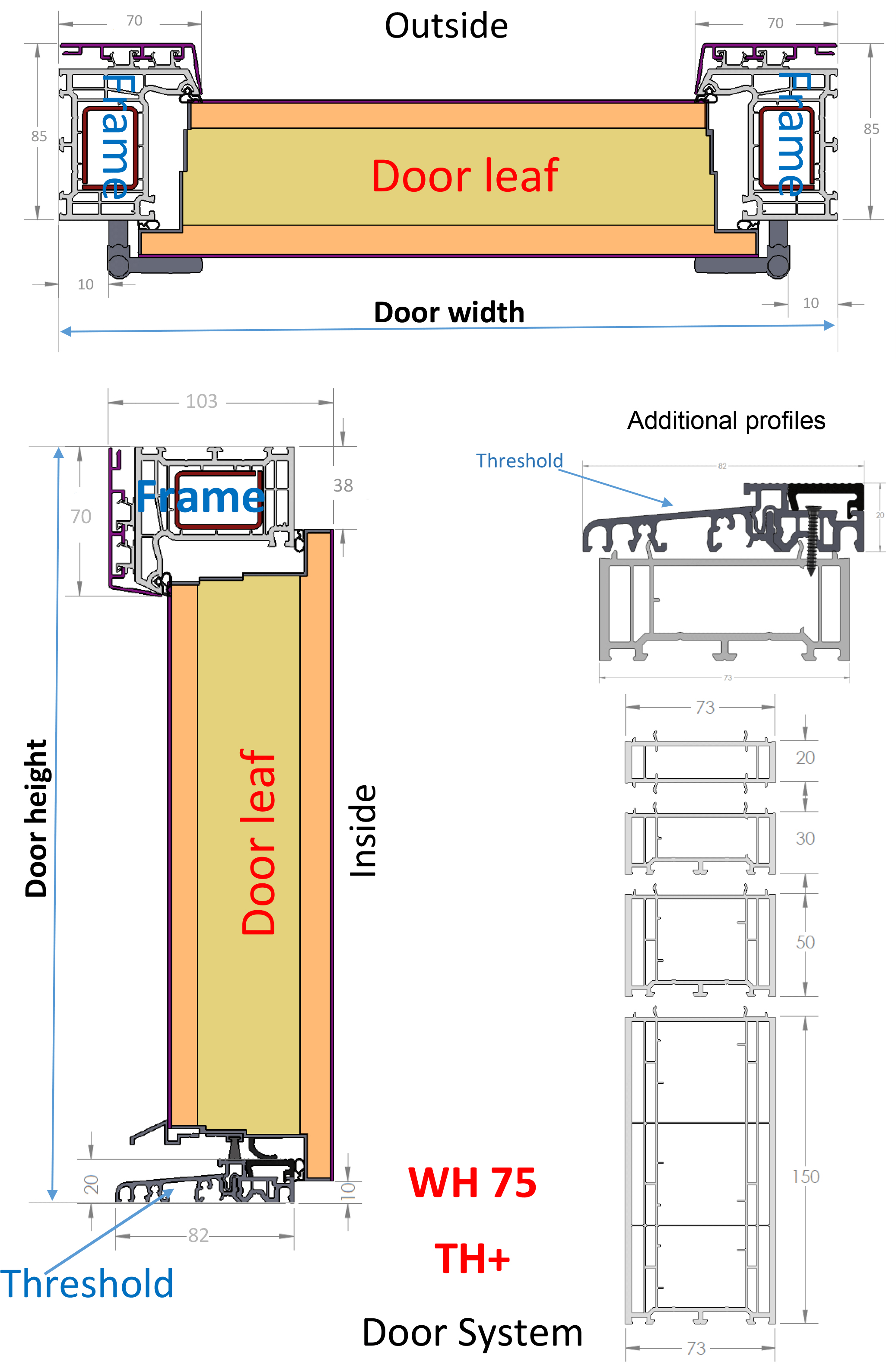

WH 75 TH+ has an extra thermal insulation and it is made from a combination of aluminum and PVC with a total depth of 103 mm.

The frame:
is made out of a PVC base, covered with aluminum cladding powder coated painted in the desired color. This aluminum cladding has perfectly welded corners, giving  the door an excellent look. Optically perfect.

  • with a depth of 73 mm plastic + 12 mm aluminum profile, the total frame depth is 85 mm;
  • Aluminum door threshold 20 mm with 2 seal and brush;
  • One demand, we can offer additional profiles: 20mm, 30mm, 50mm, 150mm, or combinations where is (extra charge).

The sash(opening):

  • One piece leaf, perfectly planer outside, both sided aluminum sheet;
  • with a depth of 73 mm plastic + aluminum plates about 2 mm, entire depth of the sash is 75 mm,
  • the door panel is a combination of several insulation materials, so that all single-block becomes a very stable structure with a depth of 62 mm;
  • 3 layer laminated safety glass, Ug 0.6 W/m2K, 43dB, security sound proof glass, satin, Glass thickness 59 mm: VSG3.3.1 Satin/ argon / LOW-E / argon / VSG3.3.1 Satin
  • the decorations are made of satin finished stainless steel.
Ordering dimensions for this door max:. 1150 x 2250 mm

     Optional sidelights 250-1000 mm.
  • Aluminum-PVC profiles with 85 mm frame and 75 mm sash, with 62 mm depth aluminum door panel
  • 2 seals around the door,
  • Ud for the entire door up to 0.8 W/m2 K.(without glass-1230x2180mm- EN10077-2:2012)

Info for WeltHaus door WH75:

  •  frame/opening outside RAL color (as desired) / white inside
  • Thermal insulation 0,8 W/m2K
  • Sound proof > 30 dB
  • Safety rquirements RC1
  • Bar handle outside
  • Hardware autoLock Winkhaus AV3 with day/night function
  • 3-dimensional hinges
  • Includes: inside and outside handle, cylinder with 3- 5 key
  • Includes: wooden box packaging.



Lead time: After receipt of technical clarification and payment: 15-25 working days.

 DESIGN:

  • Welthaus doors are designed to meet the most demanding customer requirements.
  • 1. Security doors meet the highest standards in the area, thanks to the hardware used.
  • 2. High thermal insulation. Tests prove superior wind and water tightness.
  • 3. Design. Attention to all decorative elements: plates, door handles, glass, decorative items, etc. makes out the WELTHAUS doors a perfect choise for your house.

QUALITY:

  • All our doors are produced under EN 14351-1 CE- Norm
  • Our production is in accordance with ISO 9001
    Quality management System
  • Workers respect the safety and healthy condition ISO 18001;
  • All our products are made under a strict respect for the environment, the company is working according to ISO 14001
